Iseki SF Series

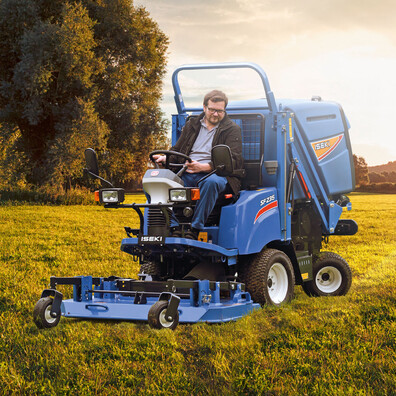

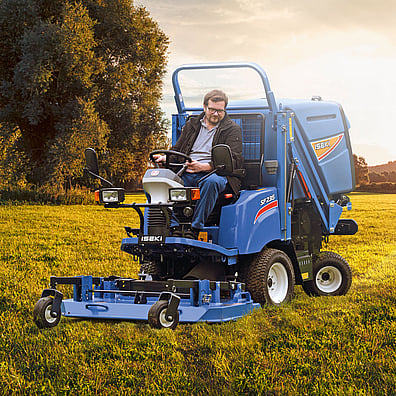

Iseki SF237 Out-Front Rotary Mower-Collector

This model acts as the superseding model to the popular SF235 mower, offered with a powerful Stage V compliant 35 horsepower diesel engine.

The SF range of out-front mowers are renowned for their flexibility and superior build quality, designed with a clear understanding of what commercial users want.

With a choice of cutting decks measuring 54” or 60” wide, these high performance out-front mower-collectors are designed to facilitate grass cutting in the most difficult areas.

Routine servicing and maintenance is refreshingly easy with excellent access to the engine, radiator and service points.

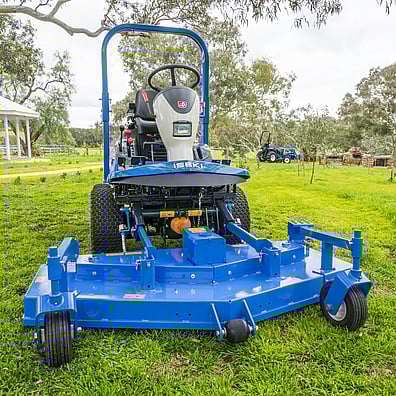

Iseki SF Series Out Front Mowers

Professional quality SF Series out front mowers are designed to give an excellent cut and finish in heavy conditions.
SF Series out front mowers combine rugged reliability and efficient, powerful engines that develop peak torque at low revs – giving you power where you need it and making easy work of heavy conditions.

Ideal for commercial operators and municipal applications, SF Series out front mowers are available with a side or rear discharge deck and a choice of a diesel or turbo diesel engines.

Designed with operator comfort in mind, SF Series out front mowers feature innovations that reduce fatigue and increase productivity.

Available Models

MODEL SF237

STAGE V ENGINE

ENGINE
Type: Iseki E3FH
No. Of Cylinders: 3
Displacement/Cyl:  1836/3
Rated Power HP: 35.4
Fuel Capacity: 40 Litres

PTO
Clutch: Multi Wet Disc
Max Speed: 2000

TRANSMISSION
Type: Hydrostatic

STEERING: Power Steering


GROUND SPEED
Foward:15km/h
Reverse: 10km/h
4WD: Auto or 4WD

BRAKES: Dry Drum

TYRES
Type: Turf
Front: 23 x 10.50 - 12
Rear: 18 x 8.5 - 8

DIMENSIONS
Length: 2790mm
Wheelbase: 1325mm
Height: 2120mm
Weight: 1060kg

MOWER DECK: SCMB60

Type: Rotary rear discharge
Cutting Width: 60"
No. Of Blades: 2
Adjustments: 1 Action Lever
Min. Cutting height: 2mm

MOWER DECK: SCMBA54

Type: Rotary rear discharge
Cutting Width: 54"
No. Of Blades: 2
Adjustments: 1 Action Lever
Min. Cutting height: 25mm

MOWER DECK: SSM54

Type: Rotary side discharge
Cutting Width: 54"
No. Of Blades: 3
Adjustments: Pin Type
Min. Cutting height: 25mm

COLLECTOR: SBC950

Capacity: 950 Litres
Blower: Turbine Fan
Dump & Lift: Hydraulic
Dump Height: 2100mm

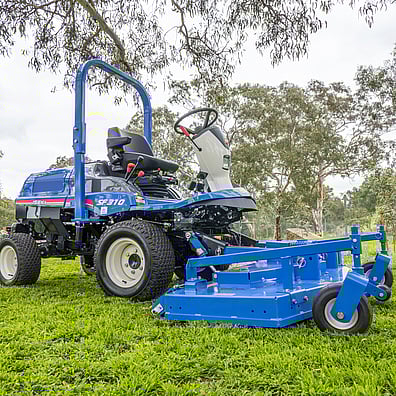

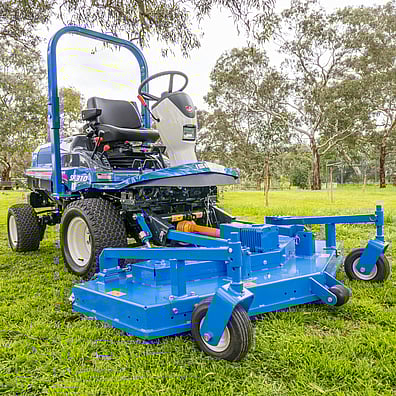

MODEL SF310

ENGINE:
Displacement/Cyl: 1498cc/3
Rated Power Kw/HPH: 31
Fuel Capacity: 48 Litres

PTO:
Type: Independent, electro-hydraulic
Clutch: Multi Wet Disc
Max Speed: 2500

TRANSMISSION:
Type: Hydrostatic 2/2

BRAKES:
Type: Wet Multi Disc

STEERING TYPE:
Hydrostatic

GROUND SPEED:
Forward: 23km/h
Reverse: 12km/h
4WD: Auto or 4WD

TYRES:
Type: Turf
Front: 23 x 10.50 – 12
Rear: 20 x 8.0-10

DIMENSIONS:
Length: 2424mm
Wheelbase: 1243mm
Height: 1486mm (to steering wheel)
Weight: 946kg

MODEL SF370

ENGINE:
Displacement/Cyl: 1498cc/3
Rated Power Kw/HPH: 37
Fuel Capacity: 48 Litres

PTO:
Type: Independent, electro-hydraulic
Clutch: Multi Wet Disc
Max Speed: 2500

TRANSMISSION:
Type: Hydrostatic 2/2

BRAKES:
Type: Wet Multi Disc

STEERING TYPE:
Hydrostatic

GROUND SPEED:
Forward: 23km/h
Reverse: 12km/h
4WD: Auto or 4WD

TYRES:
Type: Turf
Front: 23 x 10.50 – 12
Rear: 20 x 8.0-10

DIMENSIONS:
Length: 2424mm
Wheelbase: 1243mm
Height: 1486mm (to steering wheel)
Weight: 946kg
